展鹏机械（柔版印刷机专业制造商）

ZPCD

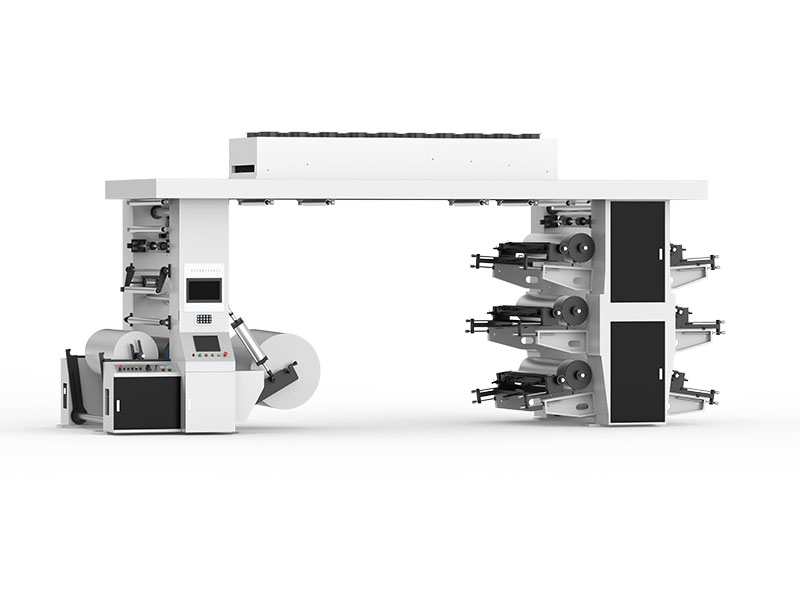

6色层叠式柔版印刷机

6-color stacked flexographic printing machine

性能特点：

1.放卷单元采用单工位或双工位结构；自动纠偏与恒张力控制；具有换料预警，断纸停机装置。

2.主电机采用变频控制，整机传动采用高精度同步皮带传动。

3.印刷单元采用陶瓷网辊传墨，单刀逆向或双向封闭式刮墨方式。

4.收料单元可采用单工位或双工位结构；使用磁粉张力控制器，具有闭环张力控制及断纸停机装置。

5.独立烘干系统，采用电加热方式，温度可调。

6.整机由PLC系统集中控制；可实现自动计米及多点调速。

Features:

1. The unwinding unit adopts a single station or dual station structure; Automatic correction and constant tension

control; Equipped with a material change warning and paper breakage shutdown device.

2. The main motor adopts frequency conversion control, and the entire machine is driven by high-precision

synchronous belt transmission.

3. The printing unit adopts a ceramic mesh roller for ink transfer, and a single blade reverse or bidirectional closed

scraping method.

4. The material receiving unit can adopt a single station or dual station structure; Using magnetic powder tension

controller, equipped with closed-loop tension control and paper cutting shutdown device.

5. Independent drying system, using electric heating method, with adjustable temperature.

6. The entire machine is centrally controlled by a PLC system; It can achieve automatic meter counting and multipoint speed regulation.
